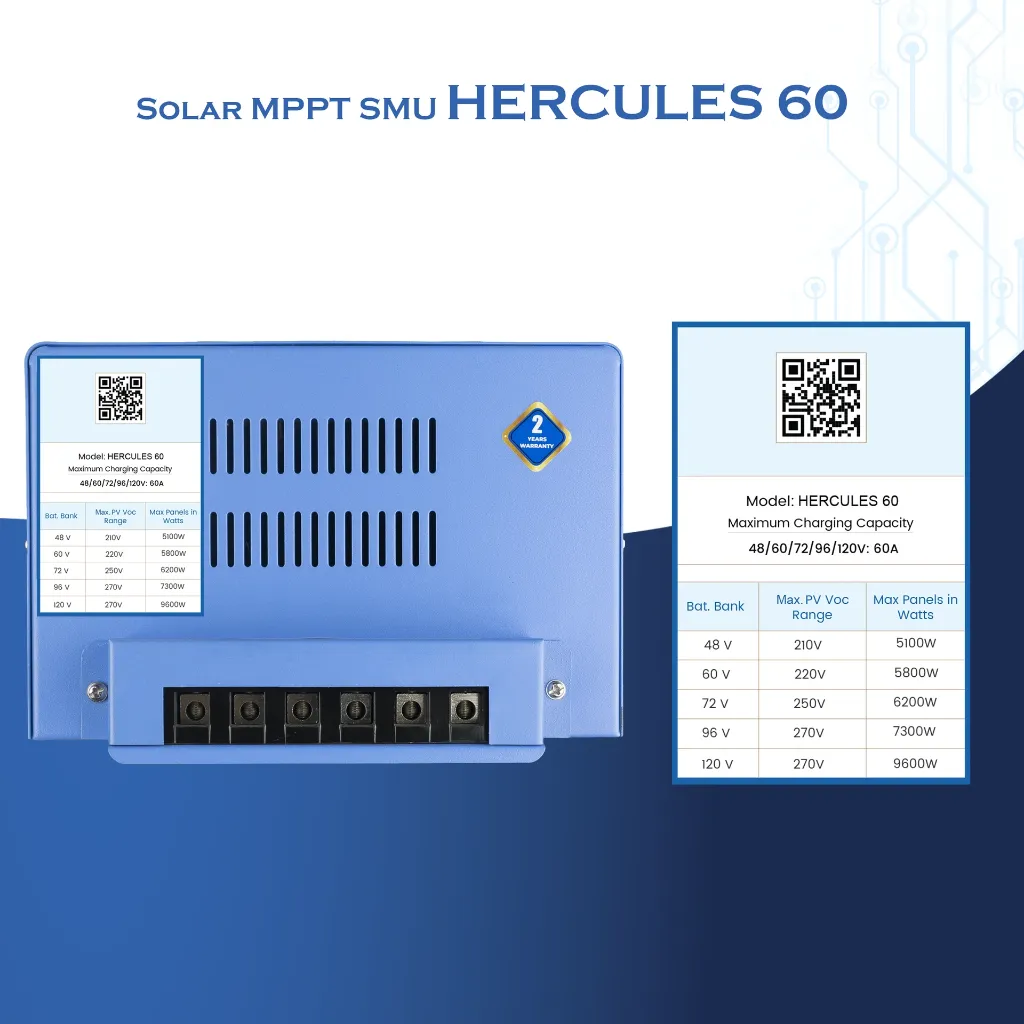

HERCULES-60
ASHAPOWER® HERCULES-60 Solar MPPT Charge Controller can be used for charging 48V, 60V, 72V, 96V & 120V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market like Polycrystalline, Monocrystalline, Mono PERC or Half-Cut Mono PERC, etc. The high PV panel input Voc range will help you to connect more panels in series to make the installation easy and flexible. HERCULES-60 is loaded with all unique features available on ASHAPOWER® Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk- Absorption- Float Equalization), etc. It is supported for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer.
Compatible for 12V/24V battery bank
Auto-detection and self setting of battery bank

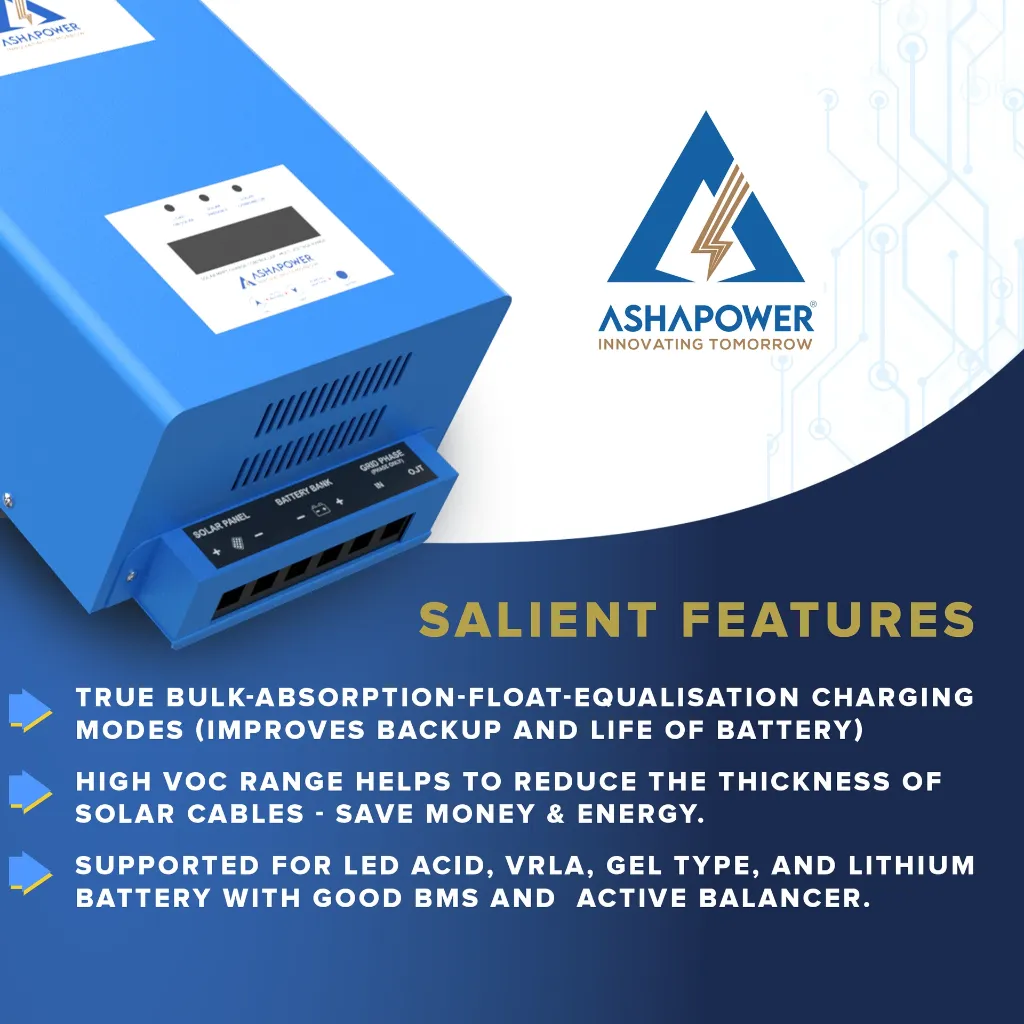

True 4 stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalisation)
Programmable Initial limited ampere battery charging facility
Ultra-fast & efficient Power Point Tracking (98.9%)
dsPIC33EP family micro controller based device
PV panel reverse polarity protection
Automatic disconnection of PV panels at night
Over voltage and overload protection from PV panels
Protection for battery against hardware failures

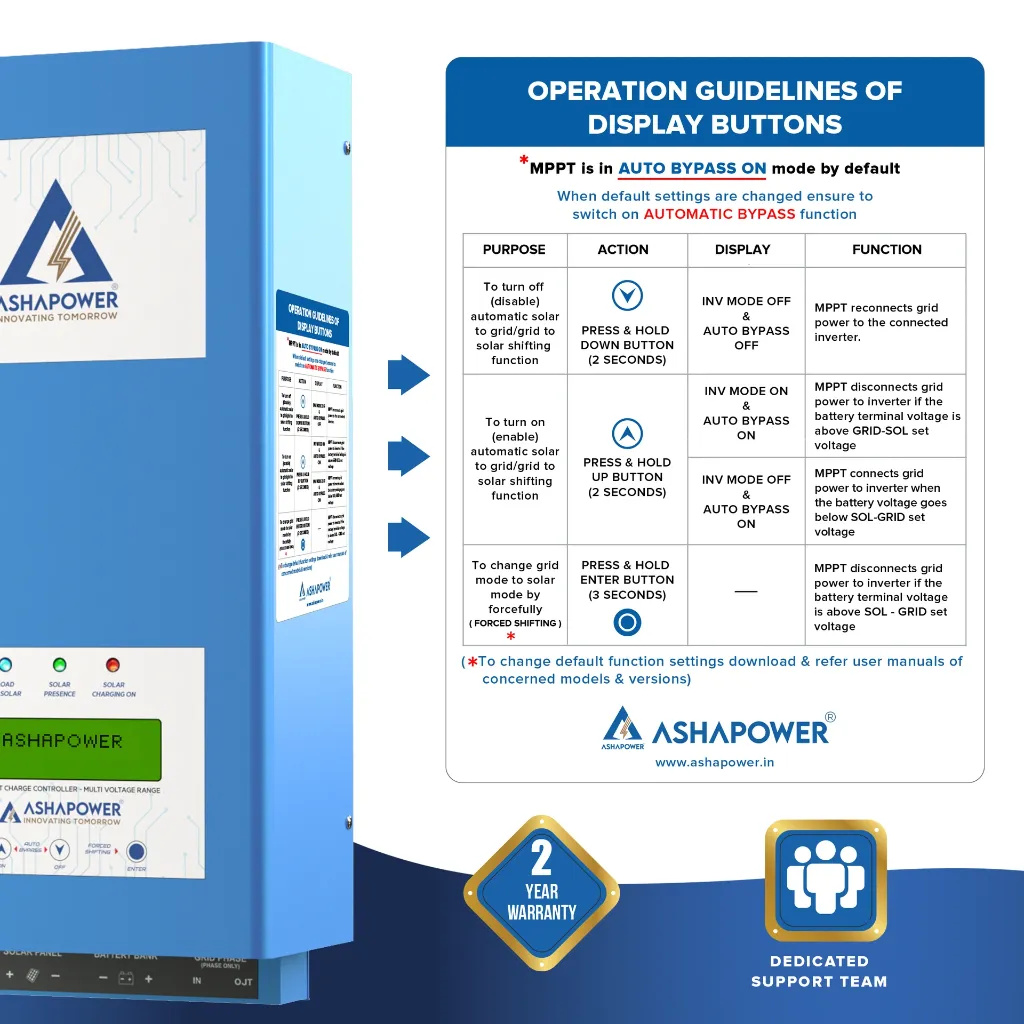

25 menu user programmable function settings and in built settings keys
Grid power control to the connected inverter (SMU-Solar Management Unit)
Forced grid to solar shifting
facilityMultifunction status display
